Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | KD LIGHTING |
| Certification: | CE,RoHS,TUV,EN62776,LM79,LM80,SAA |
| Model Number: | KD-T8D5-24KHXRZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25PCS |
|---|---|
| Price: | USD13.17/PCS |
| Packaging Details: | Netural Package,color box package,25PCS/CTN,1545(L)*220(W)*240(H)mm |
| Delivery Time: | 5-15 business days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 100000PCS/Month |
| Material: | Al+PMMA | Life-span: | 50,000 Hours |
|---|---|---|---|
| Power Efficiency: | >92% | Junction Temperature: | <> |
| Working Environment: | -40℃ ~ +50℃ | CCT: | 3000K/4000K/5000K/6500K |
| IP Rating: | IP40 | Beam Angle: | 140° |
| Socket: | G13 | ||
| High Light: | led fluorescent tube lights,t8 led tube light |
||
5ft/24W Magnetic/Conductive T8/G13 LED Light Tube TUV listed,160LPW super high efficiency 5 years guarantee
(I) Product Features:

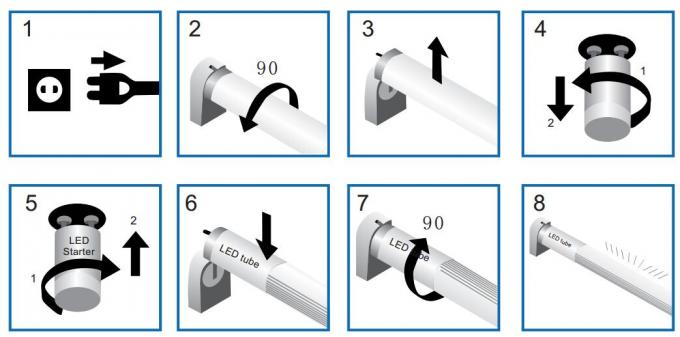

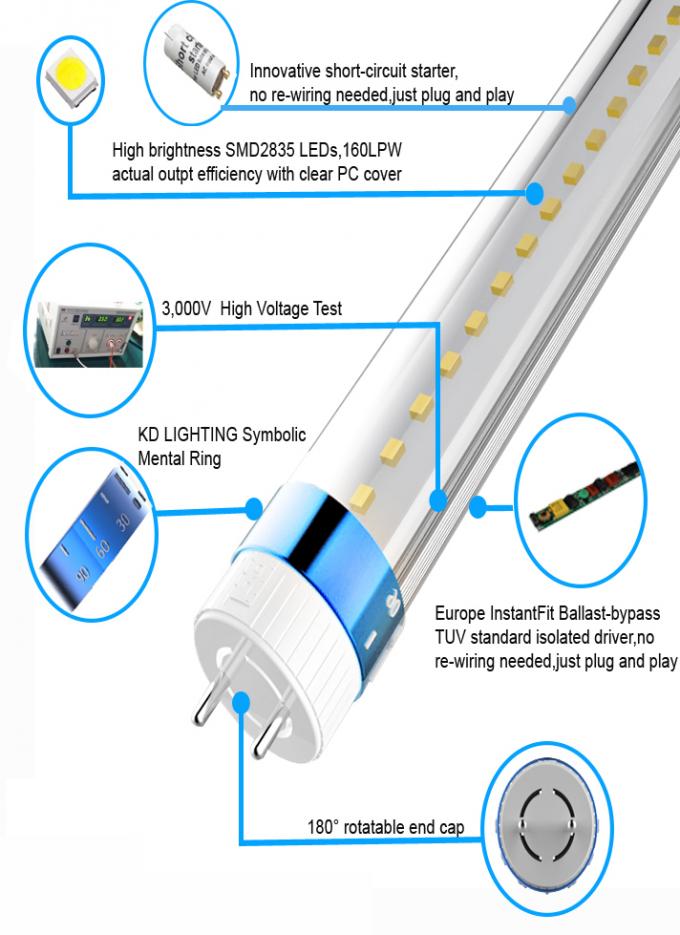

* Elegant design, G13 socket with 180° rotating end cap, easy for installation and maintenance;
* Colorful metal rings for option, Blue, Green, Silver, Red and Gold ect;
* Professional optics design, no shadow or light spot;

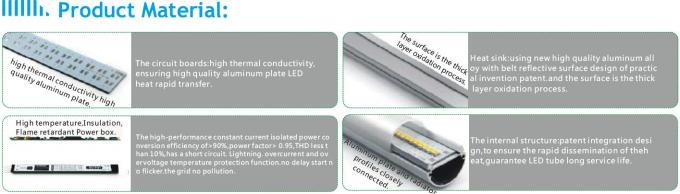

* 1/2 6063 Aluminum shell, imported high transmittance PC cover, long lifespan;
* Flicker free driver, with 3000V high voltage durability;

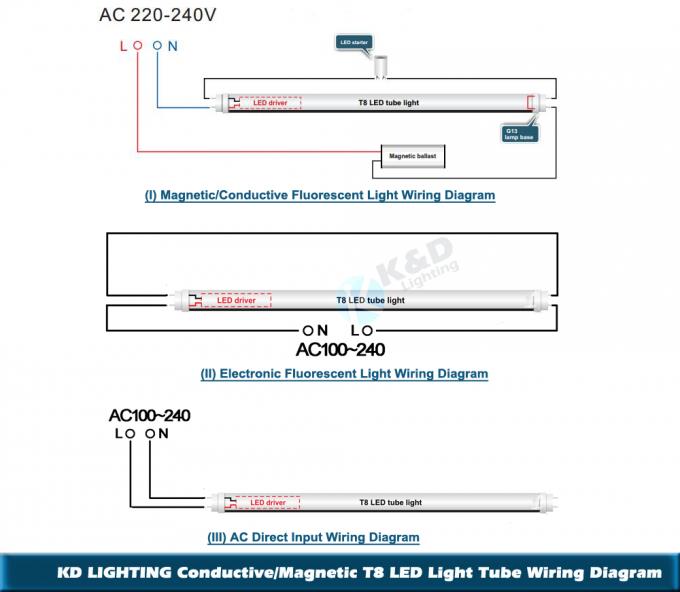

* Especially designed for Europe and Oceania market, compatible with 100% KVG/VVG(magnetic/conductive) ballast in the Europe and Oceania market without re-wiring, plug and play;
* 100LPW Standard Version, 120LPW Proline Version, 160LPW Primeline Version for option,CRI>83Ra, more sufficient, 1-100% dimming;
* EMC,EMI, LVD standard, safer for operation;
* 5 years guarantee;
(II) Applications:
* Train, Bus station and Office;
* Workshops and warehouse;
* Supermarkets;
* Exhibition center;
* Airport Hall;
* Underground garage;
(III) Quick View:
1. 24W/5ft, 2,400-3,840lm, IP40;
2. Inputing rating: AC100-240V 50/60HZ;

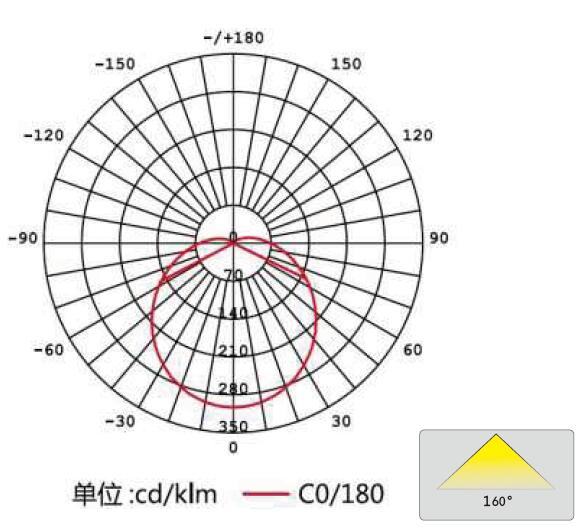

3. Beam Angle: 140º;
4. Size: ￠26*1500mm;
5. CE, RoHS,SAA,TUV,EN62776,LM79,LM80 listed;
6. 5 years guarantee;
|
Item No.
|
KD-T8D5-24KHXRZ
|
Housing color
|
Silver
|
|
Input Voltage
|
AC100-240V 50/60HZ
|
CRI
|
>83Ra
|
|
Power
|
24W
|
IP Ranking
|
IP40
|
|
Working Temp
|
-20 to +45℃
|
Power Factor (PF)
|
＞0.95
|
|
Luminous Flux
|
2400-3840lm
|
Material
|
Al+PMMA
|
|
LED QTY
|
240PCS
|
Light Source
|
SMD2835
|
|
Beam Angle
|
140º
|
LED Efficiency
|
100/120/160LPW for option
|
|
CCT
|
2700-6500K
|
Certificate
|
CE, RoHS, TUV,EN62776,SAA
|
|
Dimension
|
￠26*1500mm
|
Warranty
|
5 years
|
|
Weight
|
460g
|
Driving
|
Isolated flicker free
|
|
Delivery
|
|
|
Delivery Time
|
5-7 working days for sample orders, 10-15working days for mass orders
|
|
Payment
|
T/T,L/C, Western Union, PAYPAL
|
|
Payment Terms
|
30% T/T in advance, balance before shipment
|
|
MOQ
|
25PCS
|
| About Package | ||
| Package Carton | Neutral Package/OEM Package | |
| Components Included | Name | Qty”/PCS |
| LED tube light | 25 | |
| Specification | 1 | |
| Warrantee Card | 1 | |
