Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | KD LIGHTING |
| Certification: | TUV-GS,LM79,LM80,SAA |
| Model Number: | KD-PL0312-36HC22X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4PCS |
|---|---|
| Price: | USD26.98/PCS |
| Packaging Details: | Netural Package,color box package,4PCS/CTN,655(L)*710(W)*205(H)mm |
| Delivery Time: | 5-15 business days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Material: | Al+PMMA | Input Voltage: | AC200-240V,50Hz |
|---|---|---|---|
| Efficiency: | 100LPW(Standard Version)/120LPW(Proline Version | Life-span: | 50,000 Hours |
| Power Efficiency: | >92% | Junction Temperature: | <> |
| CCT: | 3000K/4000K/5000K/6500K | IP Rating: | IP40 |
| Beam Angle: | 160° | ||
| High Light: | flat led ceiling lights,slim led recessed lighting |
||
5 years warranty suspended Screwless installation kit 36W 30*1200mm LED Light Panel , TUV-GS listed ,120Lm/W efficiency

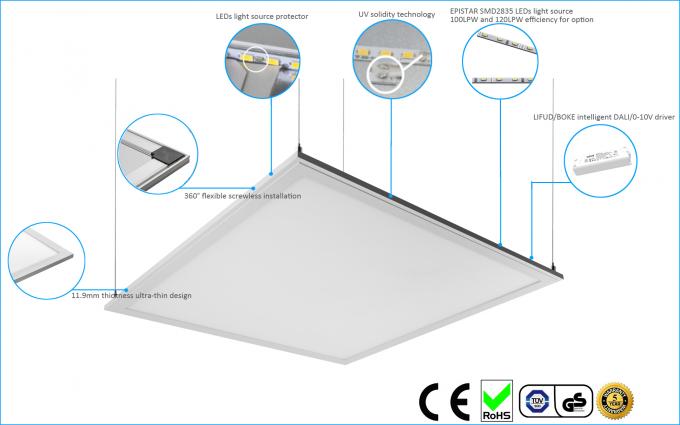

(I) Product Features:
* 3T Japen Misubishi LGP, 3T Taiwan Chimei LGP, 2.5T China LGP optional;
* Custom-made size is available, UGR<19 is available;
* 5 years guarantee;
* Elegent design, adopting high quality 6063 Al for housing, excellent heat dissipation;
* Innovative 360° installation screw design according to the actual installation ocassions;
* 11.9mm ultra slim design, 25mm width Al frame can greatly increase the illumination area;

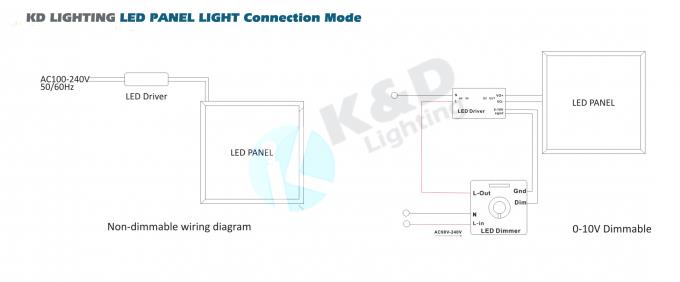

* No need re-wiring, plug and play;
* 300*300mm, 300*600mm, 600*600mm, 620*620mm, 300*1200 and 600*120mm size for option;
* 100LPW Standard Version, 120LPW Proline Version for option, CRI>83Ra, more sufficient, 1-10V, DALI, Emergency available;
(II) Applications:
* Replaces fluorescent grid;
* Retail, offices, schools, hospitals;
* Corridors and stairwells;
* Exhibition center;
* Suspended ceiling lighting for offices;
(III) Quick View:
1. 36W/30*1200mm, 3,600-3,600lm, IP40;
2. Inputing rating: AC100-240V 50/60HZ;

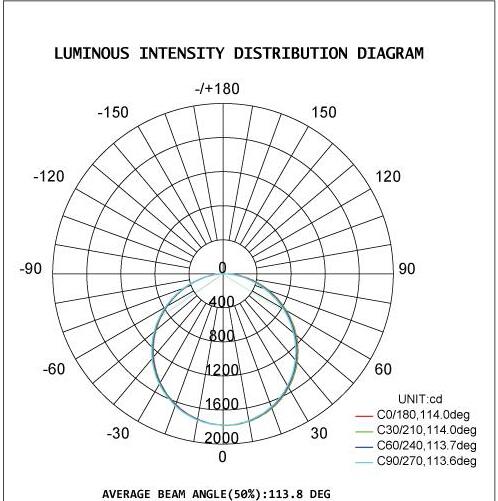

3. Beam Angle: 120º;
4. Size: 30(L)*1200(W)*11.9(T)mm;
5. TUV/GS,LM79,LM80,SAA listed;
6. 5 years guarantee;
|
Item No.
|
KD-PL0312-36HC22X
|
Housing color
|
Silver
|
|
Input Voltage
|
AC100-240V 50/60HZ
|
CRI
|
>83Ra
|
|
Power
|
36W
|
IP Ranking
|
IP40
|
|
Working Temp
|
-20 to +45℃
|
Power Factor (PF)
|
＞0.95
|
|
Luminous Flux
|
3600-3600lm
|
Material
|
Al+PMMA
|
|
LED QTY
|
240PCS
|
Light Source
|
SMD2835
|
|
Beam Angle
|
120º
|
LED Efficiency
|
100LPW/120LPW for option
|
|
CCT
|
2700-6500K
|
Certificate
|
CE, RoHS,TUV,SAA,LM79
|
|
Dimension
|
30(L)*1200(W)*11.9mm
|
Warranty
|
5 years
|
|
Weight
|
4.5Kg
|
Driving
|
Flicker-free
|
|
Delivery
|
|
|
Delivery Time
|
5-7 working days for sample orders, 10-15working days for mass orders
|
|
Payment
|
T/T, L/C, Western Union, PAYPAL
|
|
Payment Terms
|
30% T/T in advance, balance before shipment
|
|
MOQ
|
4PCS
|
| About Package | ||
| Package Carton | Neutral Package/OEM Package | |
| Components Included | Name | Qty”/PCS |
| LED Panel Light | 4 | |
| Specification | 1 | |
| Warrantee Card | 1 | |
