Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | KD LIGHTING |
| Certification: | CE,RoHS,LM80 |
| Model Number: | KD-LLF050-CE4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30m |
|---|---|
| Price: | USD71.68/PCS |
| Packaging Details: | Netural Package |
| Delivery Time: | 10000m/Month |
| Payment Terms: | L/C, T/T, Western Union |
| Input Voltage: | AC100-240V,50/60Hz | Efficiency: | 130LPW(Proline Version) |
|---|---|---|---|
| CRI: | >83Ra | Junction Temperature: | <> |
| Working Environment: | -40℃ ~ +50℃ | CCT: | 3000K/4000K/5000K/6500K |
| IP Rating: | IP54 | LEDs Brand: | LUMILEDS |
| Driver Brand: | , LIFUD | ||
| High Light: | linear ceiling light,led linear lamps |
||
5 years warranty 4ft/50W Linkable LED Linear Trunk System 130Lm/W supermarket suspended lighting fixture
(I) Product Details:

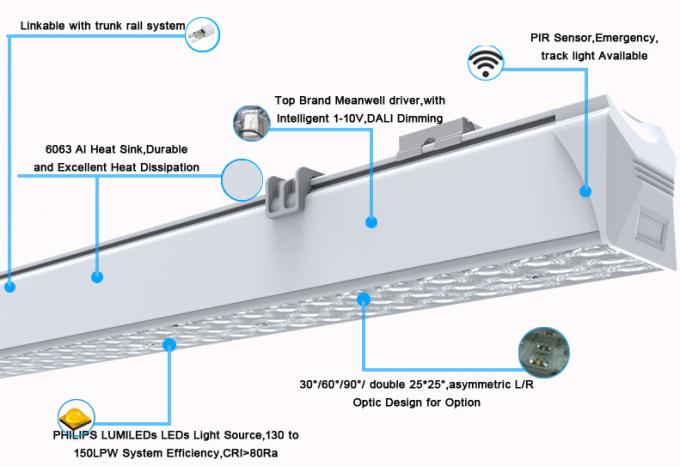

* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery, black and white finish. No toxic heavy metals, VOC, or mercury were used in the design;
* Constant current driver is isolated away from the heat source of the LEDs, keeps the stability and
performance of the driver for long life;
* Constructed in a heavy-duty 6063 aluminum and PMMA, durable and excellent heat dissipation efficiency;
* Adopting SMD3030 LEDs light source, high output lighting efficiency 130LPW, high Color Rendering Index(CRI>83Ra), excellent heat dissipation, low light decay;
* High quality Meanwell / Tridonic power supply, AC100V~240V, 50/60Hz input voltage, constant voltage or constant current output, quick responds, no flicker, lightning protection, PFC function available, 0-10V, DALI intelligent dimming available;

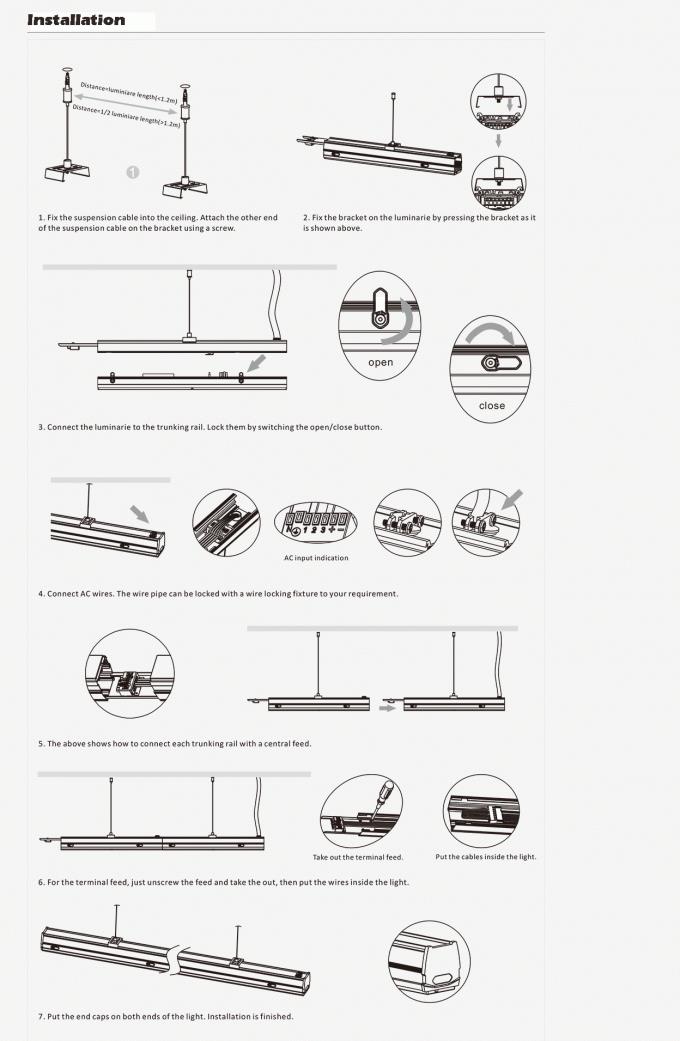

* Suspended / Surface mounted / Linkedable with trunk rail system for different occassions；
* PIR sensor, Emergency, 1-10V, DALI, Track Light is available via 5/7/11 cores with 2.5mm2 cooper cable cross section;
* 30°/60°/90°/Double 25°, asymmetric L or R light distribution 2nd optics design for option;
* CE,RoHS listed, SAA, TUV pending;
* 5 years guarantee;
(II) Applications:
* Train, Bus station and Office;
* Workshops and warehouse;
* Supermarkets;
* Exhibition center;
* Airport Hall;
* Underground garage;
(III) Quick View:
1. 50W/4ft, 6,000-6,500lm, IP40;
2. Inputing rating: AC100-240V 50/60HZ;

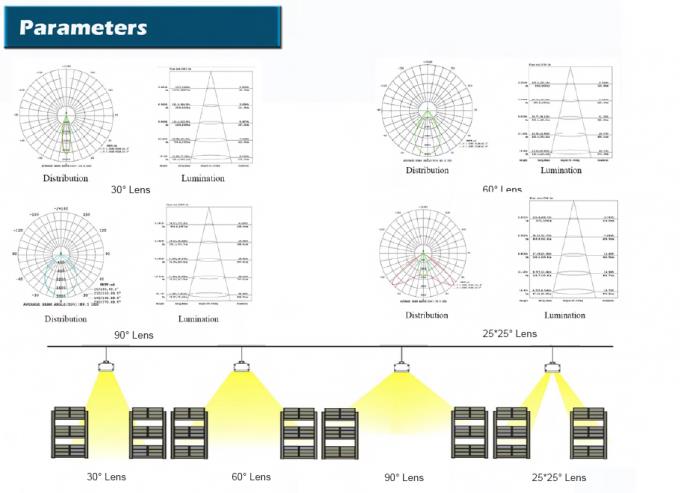

3. Beam Angle: 30°/60°/90°/Double 25°,asymmetric L or R;

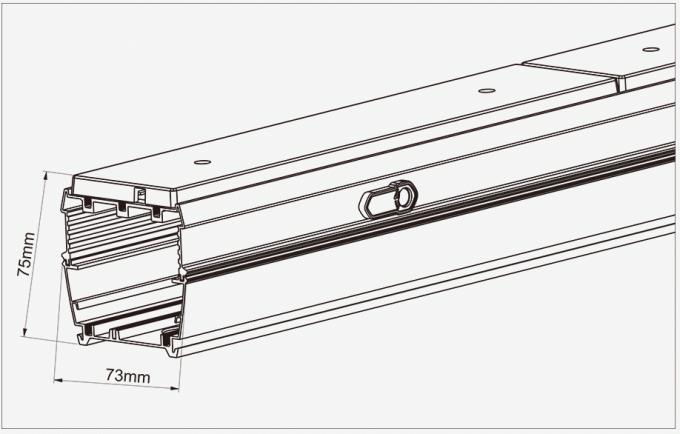

4. Size: 1160(L)*73(W)*75(H)mm;
5. CE, RoHS listed,SAA,TUV pending;
6. 5 years guarantee;
Item No. | KD-LLF050-CE4 | Housing color | Silver/Black |
Input Voltage | AC100-240V 50/60HZ | CRI | >83Ra |
Power | 50W | IP Ranking | IP40 |
Working Temp | -20 to +45℃ | Power Factor (PF) | ＞0.95 |
Luminous Flux | 6000-6500lm | Material | Al+PMMA |
LED QTY | 132PCS | Light Source | SMD3030 |
Beam Angle | 30°/60°/90°/Double 25°,asymmetric L or R | LED Efficiency | 100/130LPW for option |
CCT | 2700-6500K | Certificate | CE, RoHS listed, TUV,SAA pending |
Dimension | 1160(L)*73(W)*75(H)mm | Warranty | 5 years |
Weight | 460g | Driving | /MEANWELL |
Delivery | |
Delivery Time | 5-7 working days for sample orders, 10-15working days for mass orders |
Payment | T/T,L/C, Western Union, PAYPAL |
Payment Terms | 30% T/T in advance, balance before shipment |
MOQ | 30m |

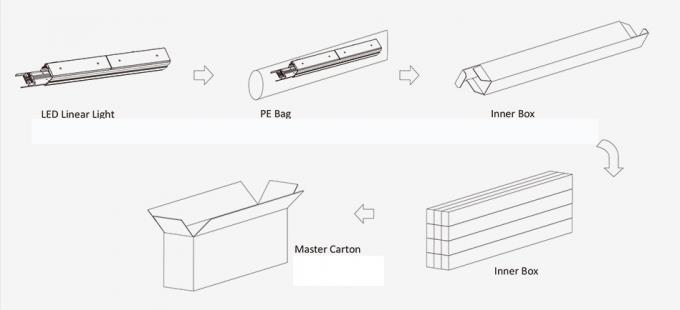

| About Package | ||
| Package Carton | Neutral Package/OEM Package | |
| Components Included | Name | Qty”/PCS |
| LED Linear Trunking Rail System | 1 | |
| Specification | 1 | |
| Warrantee Card | 1 | |
