10W Ultra Slim DOB(Driver on Board) 120Lm/W LED Flood Light Europe Version IP65 3 years warranty

(I) Product Details:
* High voltage test and insulation test passed;
* Professional CE, RoHS listed, UL/CUL, DLC listed, 3 to 5years guarantee and more than 50000 hours life span;
* High efficiency extrude aluminum A6063 with pure aluminum head sink fins in EPD finish provides perfect heat management to guarantee long life of the LED;
* Smart linear constant current IC control , light integrated with eclectrics ,more stable function;
* Constant current driver is isolated away from the heat source of the LED, keeps the stability and performance of the driver for long life;
* Adopting SMD LEDs light source, high output lighting efficiency 120lm/W, high Color Rendering Index (CRI>80), excellent heat dissipation, low light decay;
* SUS304 mounting bracket allows for strength and environmental protection, the tough bolts were offered for the free angle adjustment to optimize the target illumination;
* Die casting Aluminum shell, good mechanical strength and heat dissipation, surface anti-corrosion coating processing, high anti-corrosion grade WF2, can be used indoor and outdoor prevent corrosion environment;
*  With 0VP(over voltage protection), 0TP(over temperature protection), OFP(over flow protection) function;
*  With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK10;
*  Ultra thin design, exquisite appearce, with ADC12 Aluminium die casting lamp body, lamp body close contacts with LED light source and the fin structure provides good air ventilation, all above guarantee long lifespan for LED and Driver;



(II) Applications:
∴ Advertising, Billboard lighting;
∴ Building exterior lighting;
∴ Warehouse, Factory, stair corridors lighting;
∴ Large and small parking, Square, Stadium lighting etc;
∴ Bridges and public places, as well as other industrial and commercial lighting.
∴ Gardens lighting;
∴ Suitable for wet locations.
(III) Quick View:
1. 10W, 1,200lm, IP65;
2. Inputing rating: AC100-277V 50/60HZ;
3. Beam Angle: 120º;
4. Size: 135(L)*34(W)*123(H)mm;
5. UL/CUL,DLC,CE, RoHS,SAA listed;
6. 3 to 5 years guarantee;


(IV) Technology Parameters:

Item No.	KD-DOBFL010-BG2	Housing color	Black/White
Input Voltage	AC200-240V 50HZ	CRI	>70Ra
Power	10W	IP Ranking	IP65
Working Temp	-20 to +45℃	Power Factor (PF)	＞0.85
Luminous Flux	1100-1200lm	Material	Al+PMMA
LED QTY	20PCS	Light Source	SMD2835
Beam Angle	120º	LED Efficiency	120LPW
CCT	2700-6500K	Certificate	UL/CUL,DLC,CE, RoHS,SAA
Dimension	135(L)*34(W)*123(H)mm	Warranty	3 years
Weight	450g	Driving	Integrated



(V) Delivery and Payment Details:

Delivery
Delivery Time	5-7 working days for sample orders,10-15working days for mass orders
Payment	T/T,L/C,Western Union,PAYPAL
Payment Terms	30% T/T in advance,balance before shipment
MOQ	40PCS



(VI) Optical & Photometric Data:

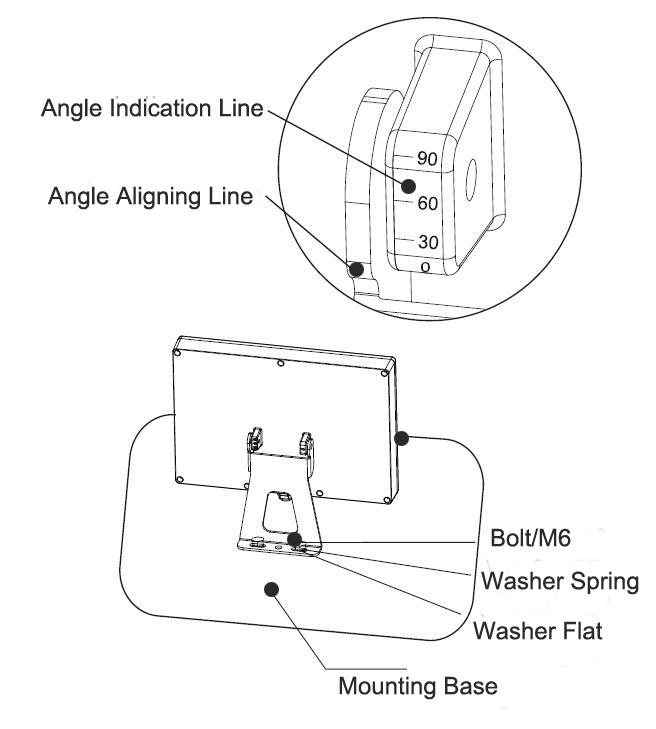

(VII) Installation:

1. Turn mounting bracket to right position as picture shows. Lock mounting bracket with socket head wrench;

2. Align mounting holes on lamp bracket with hole on mounting surface. Lock with wrench, screw
locking torque should be no less than 8N.m;

3. Lamp can be adjustable to suitable position by angle indicate line. Use hexagon wrench locking again.



(VIII) Package:

About Package
Package Carton	Neutral Package/OEM Package
Components Included	Name	Qty”/PCS
	LED Flood Light	1
	Specification	1
	Warrantee Card	1
