Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | KD LIGHTING,KODEEVIA |
| Certification: | CE,RoHS,ETL,DLC,LM80,SAA |
| Model Number: | KD-LB240-CE2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | USD176.98/PCS |
| Packaging Details: | Netural Package,color box package for option |
| Delivery Time: | 5-7 business days for samples,10 to 15 business days for bulk orders |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/Month |
| Material: | Al+PMMA | Efficiency: | 100LPW(Standard Version)/120LPW(Proline Version)/170LPW(Primeline Version) |
|---|---|---|---|
| CRI: | >83Ra | Power Efficiency: | >92% |
| Working Environment: | -40℃ ~ +50℃ | IP Rating: | IP54 |
| LEDs Light Source: | SMD5050 | ||
| High Light: | 4 foot led high bay,industrial high bay led lighting |
||
170Lm/W 4ft/240W Linear LED High Bay Light IP54 CE suspended industrial warehouse lighting fixture 5 years warranty
(I) Product Details:

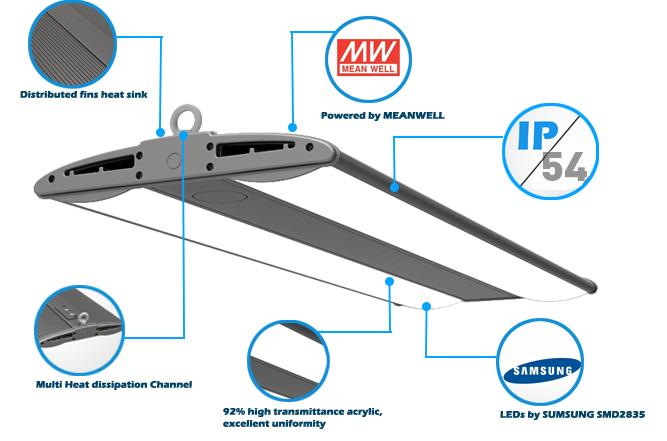

* Adopting high power LEDs light source, super high output lighting efficiency can be up to 170LPW, high Color Rendering Index (CRI>80), low light decay;
* Heavy-duty die casting aluminum alloy shell is equipped with well processed fins for quality heat sink throughout, frosted PC cover are fitted on the luminaire for glare prevention and maximized brightness;
* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a white finish. No toxic heavy metals, VOC, or mercury were used in the design of this product;
* Constant current driver is isolated away from the heat source of the LED, keeps the stability and performance of the driver for long life.;
* Die casting Aluminum shell, good mechanical strength and heat dissipation;
* High quality Meanwell power supply, AC90V~305V,50/60Hz input voltage, constant current output, quick responds, no flicker, lighting protection, PFC function available;
* 1-10V, DALI dimming is available, daylight sensor for option;

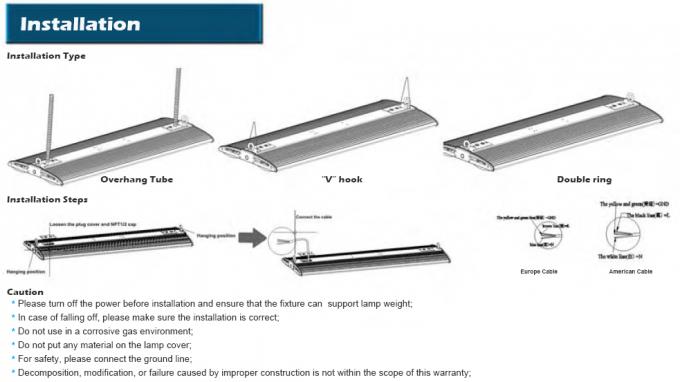

* 3 installation optional;
* 5 years guarantee;
(II) Applications:
∴ Shipyards;
∴ Mines;
∴ Workshops;
∴ Warehouse;
∴ Highway toll stations;
∴ Gas stations;
∴ Supermarkets;
∴ Exhibition center;
(III) Quick View:
* 240W/4ft, 24,000-40,800lm, IP54;
* Inputing rating: AC85-305V 50/60HZ;

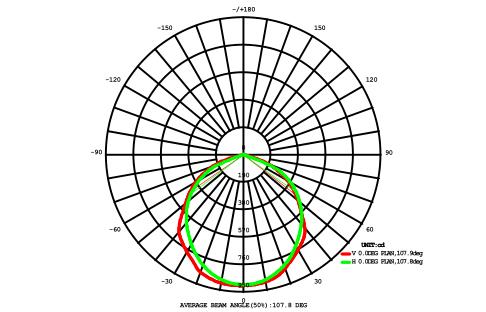

* Beam Angle: 120º;
* Size: 1224(L)*426(H)*113.6(D)mm;
* CE, RoHS listed,ETL,DLC pending;
* 5 years’ guarantee;
|
Item No.
|
KD-LB240-CN2
|
Housing color
|
Silver, Black, Grey etc
|
|
Input Voltage
|
AC85-305V 50/60HZ
|
CRI
|
>80
|
|
Power
|
240W
|
IP Ranking
|
IP54
|
|
Working Temp
|
-20 to +45℃
|
Power Factor (PF)
|
＞0.9
|
|
Luminous Flux
|
24,000-40,800lm
|
Material
|
Die-cast Aluminum
|
|
LED QTY
|
240PCS
|
Light Source
|
SMD5050
|
|
Beam Angle
|
120º
|
LED Efficiency
|
170LPW
|
|
CCT
|
2700-6500K
|
Certificate
|
CE, RoHS,ETL,DLC
|
|
Dimension
|
1224(L)*426(H)*113.6(D)mm
|
Warranty
|
5 years
|
|
Weight
|
14.8Kg
|
Driving Brand
|
Sosen/Meanwell
|
|
Delivery
|
|
|
Delivery Time
|
5-7 working days for sample orders, 10-15working days for mass orders
|
|
Payment
|
T/T,L/C, Western Union
|
|
Payment Terms
|
30% T/T in advance, balance before shipment
|
|
MOQ
|
5PCS
|
|
About Package
|
||
|
Package Carton
|
Neutral Package/OEM Package
|
|
|
Components Included
|
Name
|
Qty”/PCS
|
|
Linear LED high bay light
|
1
|
|
|
Specification
|
1
|
|
|
Warrantee Card
|
1
|
|
