Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | KD LIGHTING |
| Certification: | ETL,DLC,LM79,LM80,CE,RoHS |
| Model Number: | KD-TF0204-60NX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | USD78.35/PCS |
| Packaging Details: | Netural Package,color box package |
| Delivery Time: | 3-5 business days for samples,10 to 15 business days for bulk orders |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Material: | Al+PC | Guarantee: | 5 Years |
|---|---|---|---|
| Input Voltage: | AC100-277V,50/60Hz | Life-span: | 50,000 Hours |
| Junction Temperature: | <> | Working Environment: | -40℃ ~ +50℃ |
| IP Rating: | IP20 | Beam Angle: | 120° |
| High Light: | 2x2 troffer lights,led recessed troffer |
||
2*4ft 60W LED Troffer Light Retrofit Kits ETL DLC listed 130Lm/W high efficiency 5 years warranty
(I) Product Features:
* UL/CUL,DLC,CE, RoHS listed professional lighting fixture for office or exhibition halls;
* Using top quality Epistar SMD2835 LEDs light source, high output lighting efficiency can be up to 130Lm/W, high Color Rendering Index (CRI>80Ra) with excellent heat dissipation and very low light decay;
* Constructed in a heavy-duty 6063 aluminum and PC, durable and excellent heat dissipation efficienc;
* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery, black and white finish. No toxic heavy metals, VOC, or mercury were used in the design;
* High quality KD LIGHTING power supply, AC100V~277V, 50/60Hz input voltage, constant voltage or
constant current output, quick responds, no flicker, lightning protection, PFC function available, 0-10V availableconstant available;

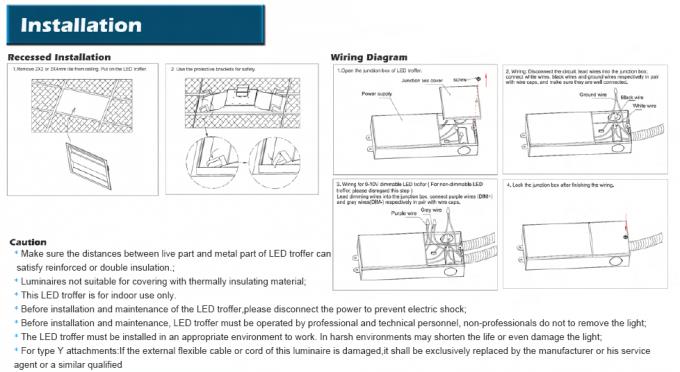

* Recessed installation;
* 1-10V,DALI, Daylight sensor intelligent control is available;
* 5 years’ guarantee;
(II) Applications:
* Train, Bus station and Office;
* Workshops and warehouse;
* Supermarkets;
* Exhibition center;
* Airport Hall;
* Underground garage;
(III) Quick View:
1. 60W/2*4ft, 7,200-7,800lm, IP20;
2. Inputing rating: AC100-277V 50/60HZ;
3. Beam Angle: 120º;
4. Size: 23.74(L)*47.75(W)*4.05(D)ft;
5. UL/CUL,DLC,CE,RoHS listed;
6. 5 years guarantee;
|
Item No.
|
KD-TL0204-60NX
|
Housing color
|
Silver/White
|
|
Input Voltage
|
AC100-277V 50/60HZ
|
CRI
|
>83Ra
|
|
Power
|
60W
|
IP Ranking
|
IP20
|
|
Working Temp
|
-20 to +45℃
|
Power Factor (PF)
|
＞0.95
|
|
Luminous Flux
|
7200-7800lm
|
Material
|
Al+PMMA
|
|
LED QTY
|
300PCS
|
Light Source
|
SMD2835
|
|
Beam Angle
|
120º
|
LED Efficiency
|
130LPW
|
|
CCT
|
2700-6500K
|
Certificate
|
UL/CUL,DLC,CE,RoHS listed
|
|
Dimension
|
23.74(L)*47.75(W)*4.05(D)ft
|
Warranty
|
5 years
|
|
Weight
|
5.9Kg
|
Driving
|
Flicker free
|
|
Delivery
|
|
|
Delivery Time
|
5-7 working days for sample orders, 10-15working days for mass orders
|
|
Payment
|
T/T,L/C, Western Union, PAYPAL
|
|
Payment Terms
|
30% T/T in advance, balance before shipment
|
|
MOQ
|
1PCS
|
| About Package | ||
| Package Carton | Neutral Package/OEM Package | |
| Components Included | Name | Qty”/PCS |
| LED Troffer Light | 1 | |
| Specification | 1 | |
| Warrantee Card | 1 | |
