Playground / Parking Area Lighting Fixtures 250W 50000 Hours Long Lifespan

Playground / Parking Area Lighting Fixtures 250W 50000 Hours Long Lifespan

We will send the quotation to you within 24 hours.
Your Name
Your Email
Message
Features

Product Details:

Place of Origin: Shenzhen,China
Brand Name: KD LIGHTING,KODEEVIA
Certification: CE,RoHS,ETL,DLC,LM80
Model Number: KD-AL250-BG1

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: US149.76/PCS
Packaging Details: Netural Package,color box package for option
Delivery Time: 5-15 business days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 30000PCS/Month
Tech Specs


Detailed Product Description
Input: AC100-277V,50/60Hz Efficiency: 130LPW
Life-span: 50,000 Hours Junction Temperature: <>
Working Environment: -40℃ ~ +50℃ IP Rating: IP65
Beam Angle: 90°x140°/90°x120°/V 120°/80°x135° For Option LEDs Light Source: SMD3030
High Light:

led area security light

,

parking area lights

5 years warranty 250W 130Lm/W efficiency LED Area Light for Street lighting/Parking lot ETL DLC CE listed

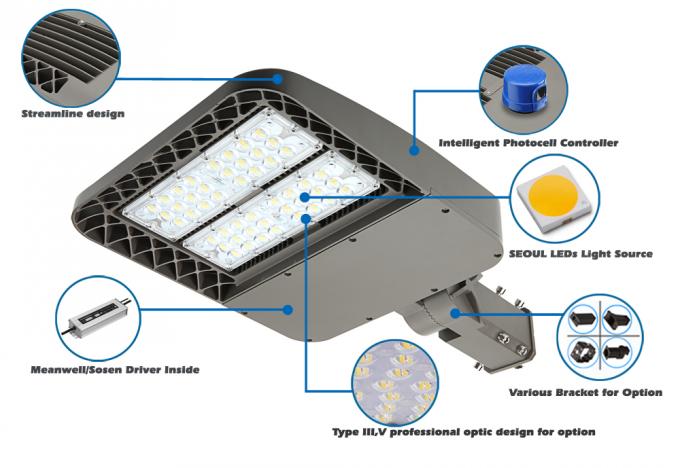

(I) Product Details:
*  Top brand hardware ensure an excellent performance and high reliablity. PHILIP LUMILEDs LEDs light source,Inventronics driver;
*  Top process of housing and coating ensure a high relaibility when used in complex situation. Rugged die-cast aluminum housing with corrosion resistant hardware, super durable powder coating finish withstand extreme climate changes without cracking or peeling;
*   Air-flow through heat sink design provides perfect heat management, lighter but stronger construction. Smooth and glossy processing with natural clean system prevents debris build-up and minimizes wind loading;
*   Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD for local assembly.;
*   90*120°professional wide site lighting optic design, Type III Medium(90°x140°), Type III Short 90°x120°, Type V 120°, Type II 80°x135° for option;
*   Adopting SMD3030 LEDs light source, high output lighting efficiency 130LPW, high Color Rendering Index (CRI>80), excellent heat dissipation, low light decay;.
*   Tool-less access to the down-opening driver door makes easy maintenance and operation;
*   Intelligent dimming control available, photocell controller is available;
*   Maintenance Free , IP66 protection, IK10 vibration grade;
*   LM-79/80 reports available, L70 more than 60,000 hours;
*   ETL,DLC,CE, RoHS listed, 5 years’ warranty.
Playground / Parking Area Lighting Fixtures 250W 50000 Hours Long Lifespan

(II) Applications:
∴ Roadways;
∴ Avenues;
∴ Walkways;
∴ Loading Area;
∴ Parking lot.
∴ Playground;
∴ Sport and Stadium;

(III) Quick View:
∴  250W, 30,000-32,500lm, IP65;
∴  Inputing rating: AC100-277AC /AC250-528V 50/60HZ
∴  Beam Angle:  Type Ⅱ,Ⅲ,Ⅳ,Ⅴoptics for option;
∴  Size: 430(L)*430(H)*84(D)mm;
∴  ETL,DLC,CE,RoHS;
∴  5 years guarantee;

(IV) Technology Parameters:
Item No.
KD-AL250-BG1
Housing color
Silver, Black, Grey etc
Input Voltage
AC100-277AC /AC250-528V 50/60HZ
CRI
>70Ra
Power
250W
IP Ranking
IP65
Working Temp
-20 to +45℃
Power Factor (PF)
>0.9
Luminous Flux
30000-32500lm
Material
Die-cast Aluminum
LED QTY
80PCS
Light Source
SMD3030
Beam Angle
Type Ⅱ,Ⅲ,Ⅳ,Ⅴ for option
LED Efficiency
130LPW
CCT
2700-6500K
Certificate
CE, RoHS, ETL,DLC
Dimension
430(L)*430(H)*84(D)mm
Warranty
5 years
Weight
11.3Kg
Driving Brand
MEANWELL/SOSEN

(V) Delivery and Payment Details:
Delivery
Delivery Time
5-7 working days for sample orders, 10-15working days for mass orders
Payment
T/T,L/C, Western Union
Payment Terms
30% T/T in advance, balance before shipment
MOQ
10PCS

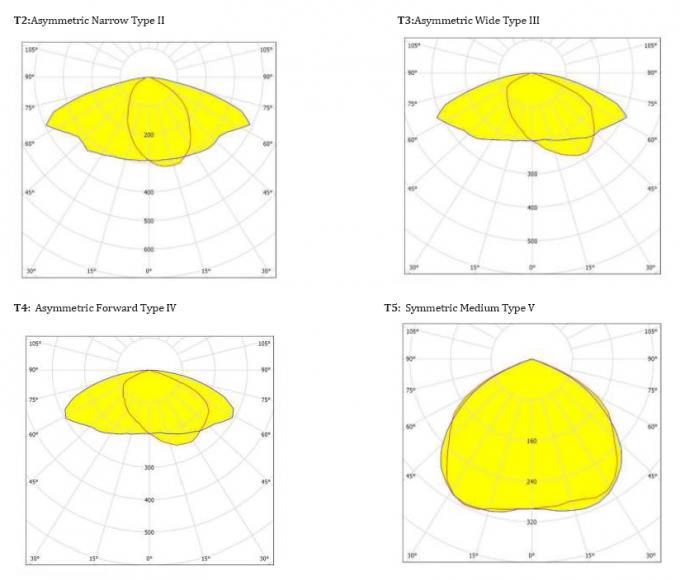

(VI)  Optical & Photometric Data:
Playground / Parking Area Lighting Fixtures 250W 50000 Hours Long Lifespan

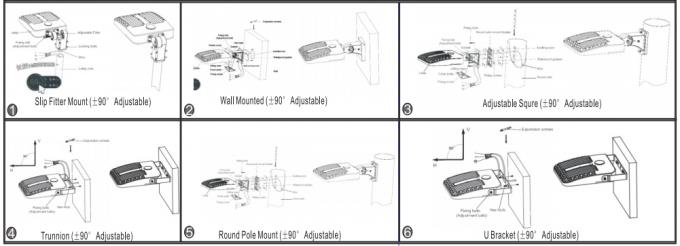

(VII) Installation:
Playground / Parking Area Lighting Fixtures 250W 50000 Hours Long Lifespan

(VIII)  Package:
About Package
Package Carton
Neutral Package/OEM Package
Components Included
Name
Qty”/PCS
LED area light
1
Specification
1
Warrantee Card
1
