Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | KD LIGHTING,KODEEVIA |
| Certification: | CE,RoHS,LM80,SAA,ETL,DLC pending |
| Model Number: | KD-ST100-CG1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | USD101.38/PCS |
| Packaging Details: | Netural Package,color box package for option |
| Delivery Time: | 5-7 business days for samples,10 to 20 business days for bulk orders |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/Month |
| Material: | Al+PMMA | Input: | AC90-305V,50/60Hz |
|---|---|---|---|
| Efficiency: | 100LPW(Standard Version)/140LPW(Proline Version) | CRI: | >70Ra/<80ra for=""> |
| Junction Temperature: | <> | Working Environment: | -40℃ ~ +50℃ |
| LEDs Light Source: | /NICHIA SMD3030 | Driver: | Meanwell/Sosen For Option |
| Surge Protection: | 10KV/5KA | ||
| High Light: | energy saving street lights,intelligent street lighting |
||
100W Intelligent LED Street Light IP65 140Lm/W IP66 outdoor security lighting CE RoHS ETL DLC listed 5 years warranty
(I) Product Specifications:
* Maintenance Free,IP66 protection,IK10 vibration grade; Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly;
* LM-79/80 reports available; more than 60000 hour life span, CE,RoHS listed,UL/CUL pending,5 years’ warranty.
* Rugged die-cast aluminum housing with corrosion resistant hardware, super durable powder coating finish withstand extreme climate changes without cracking or peeling;
* Air-flow through heat sink design provides perfect heat management, lighter but stronger construction. Smooth and glossy processing with natural clean system prevents debris build-up and minimizes wind loading;
* Dual-hoop mounting system fitted to 40-60mm (O.D.) mast-arms accommodates safety and stability. Capable of being adjusted the degree of ±45°;
* Top brand conponents, LUMILEDS LEDs light source,Meanwell/SOSEN driver,durable;
* Adopting SMD3030/5050 LEDs light source, high output lighting efficiency 100-130lm/W, high Color Rendering Index (CRI>70/80Ra), excellent heat dissipation,low light decay;.
* Tool-less access to the down-opening driver door makes easy maintenance and operation;
* Intelligent dimming control available,photocell controller is available;
(II) Applications:
∴ Roadways;
∴ Avenues;
∴ Walkways;
∴ Loading Area;
∴ Parking lot.
∴ Playground;
∴ Sport and Stadium;
(III) Quick View:
* 100W, 14,000lm±5%, IP65;
* Inputing rating: AC90-305V 50/60HZ;

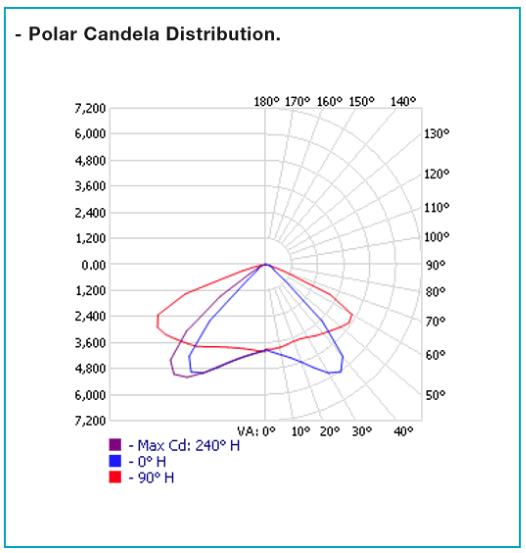

* Beam Angle: 65*120°/75°*135° for option;

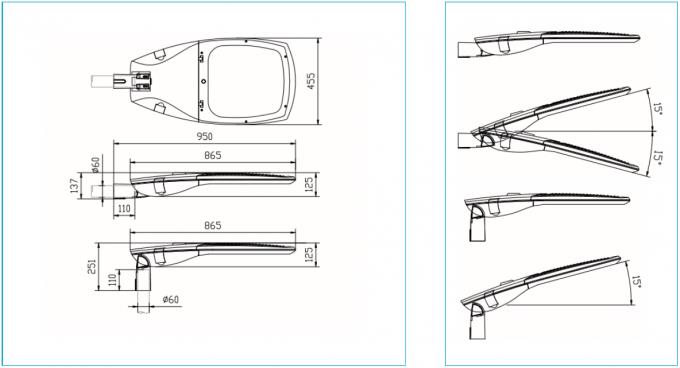

* Size: 765(L)*381(H)*131(D)mm;
* CE, RoHS,LM80,ETL,DLC,SAA pending;
* 5 years guarantee;
(IV) Technology Parameters:
|
Item No.
|
KD-ST100-CG1
|
Housing color
|
Silver, Black, Grey etc
|
|
Input Voltage
|
AC90-305V 50/60HZ
|
CRI
|
>70/80Ra for option
|
|
Power
|
100W
|
IP Ranking
|
IP66
|
|
Working Temp
|
-20 to +45℃
|
Power Factor (PF)
|
＞0.9
|
|
Luminous Flux
|
14,000lm±5%
|
Material
|
Die-cast Aluminum
|
|
LED QTY
|
72PCS
|
Light Source
|
SMD3030
|
|
Beam Angle
|
65*120°/75°*135° for option
|
LED Efficiency
|
100LPW(Standard Version)/130LPW(Proline Version)
|
|
CCT
|
2700-6500K
|
Certificate
|
CE, RoHS,LM80,ETL,DLC,SAA for option
|
|
Dimension
|
765(L)*381(H)*131(D)mmmm
|
Warranty
|
5 years
|
|
Weight
|
10.8Kg
|
Driving Brand
|
Sosen/Meanwell
|
|
Delivery
|
|
|
Delivery Time
|
5-7 working days for sample orders,10-15working days for mass orders
|
|
Payment
|
T/T,L/C,Western Union
|
|
Payment Terms
|
30% T/T in advance,balance before shipment
|
|
MOQ
|
5PCS
|
| About Package | ||
| Package Carton | Neutral Package/OEM Package | |
| Components Included | Name | Qty”/PCS |
| LED Street Light | 1 | |
| Specification | 1 | |
| Warrantee Card | 1 | |
