Product Details:
 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | USD45-100 |
| Packaging Details: | 1pc/inner box/290*290*180/3.3kg 4pcs/ctn/590*300*370/14.05kgs |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000PCS/MONTH |
| Product Name: | Led Grow Light | Material: | Alluminum |
|---|---|---|---|
| Input Voltage: | AC100-277V | Spectrum: | 660nm/460nm |
| Actual Power: | 140w | HPS/HID Replace: | 300W |
| Certification: | CE, ETL, FCC, RoHS | Warranty: | 3 Years |
| PPF: | 2.0umol/J | ||
| High Light: | full spectrum led plant grow light,led grow lamp |
||

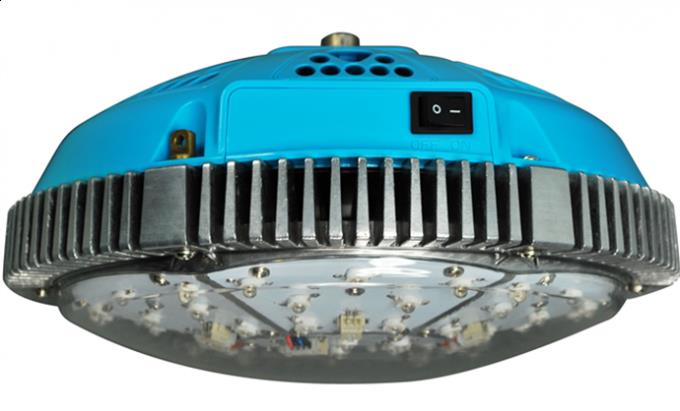

FULL SPECTRUM UFO LED GROW LIGHT
| Power | 140w |
| Life Span | 50,000h |
| Working Environment | 45%~95%,-20~40℃ |
| Working Frequency | 50/60Hz |
| Input Voltage | 100~240V AC |
| Input Current | 0.4~1.1A |
| Output Voltage | 55~70V DC |
| Output Current | 700mA |
| LED Qty | 75pcs*3W |
| Size | Ф260*136mm |
| PF | 0.98 |
| Net Weight | 3.05kg |

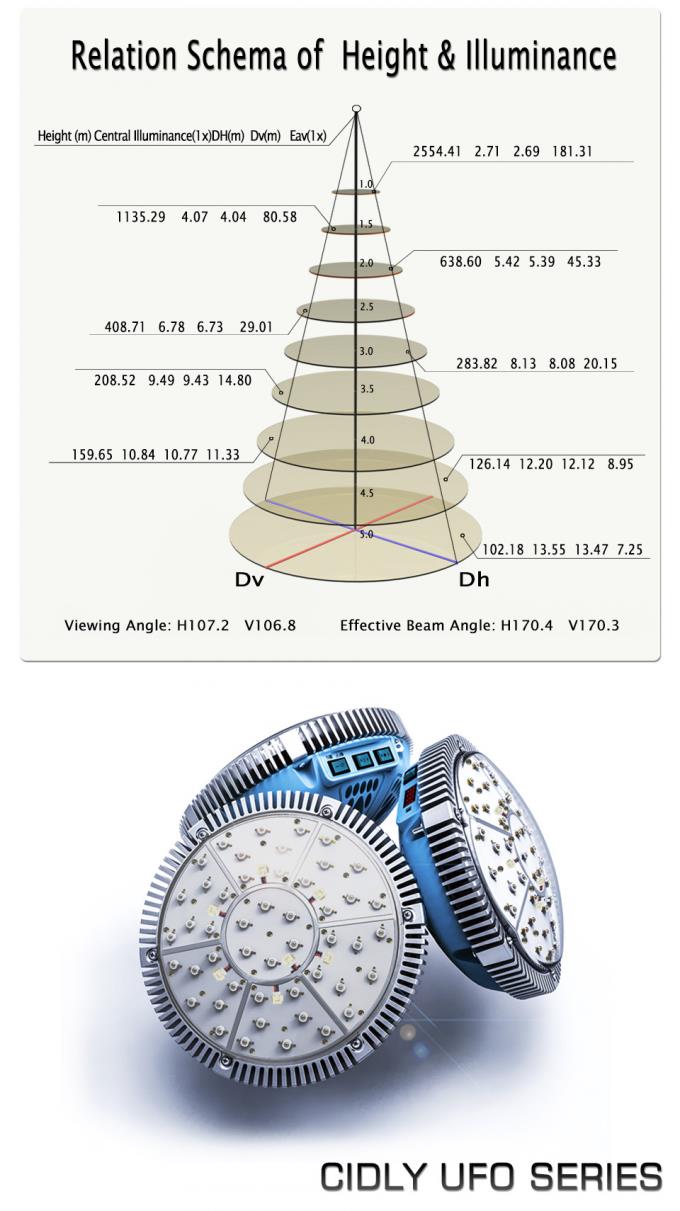

The Test report of LED grow light
| PAR Value (umol m-2s-l) | ||||||||
| Height(cm) | 20 | 40 | 60 | 80 | 100 | 120 | 150 | 200 |
| PAR(umol m-2s-l) | 580 | 170 | 83 | 50 | 32 | 22 | 14 | 8 |
| Illumination(lux) | 15080 | 4880 | 2880 | 1335 | 816 | 576 | 380 | 221 |
| Irradiation Area(㎡) | 9.62 | 14.51 | 18.84 | 22.21 | 22.38 | 25.5 | 25.26 | 34.19 |
UFO Series IES Test Report
Test sample:130
CI E TR #1 27: 1997
product:UFO-130
Voltage:227.5V Current:0.7A
Power:137.00W PF:0.98
lnstrument:HAAS-2000(EVRFINE) Operator:Admin
Test Conditions:
Temperature:25.3Deg RH:65.0%
Scan Range:380mm-780mm IP:45019(69%)
T:86s Delicacy:High
Test Result:
Luminous flux:7167.7LM
Efficiency:100%
Light Efficiency(LER):52
Central Luminous intensity:2554.41 cd
Peak Luminous intensity:2554.41 cd
Position of peak luminous intensity:H0 V1
Light distribution: Upper 0% Downward 100%
Horizontal diffusion angle(10%,25%50%,75%)
H170.4,H142.4,H107.2,H72.3
Vertical diffusion angle(10%,25%50%,75%):
V170.3,V142,V106.8,V72.5

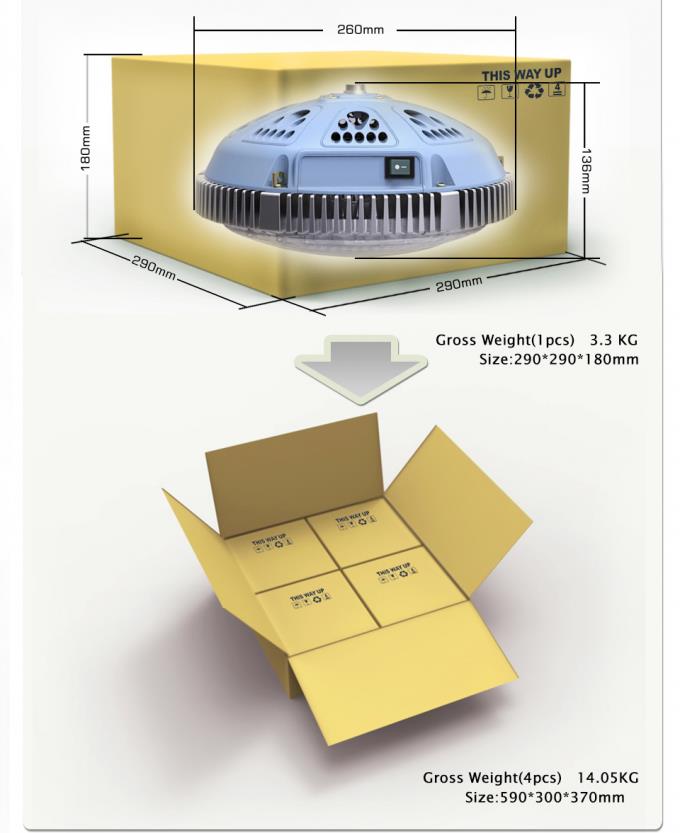

PACKAGE:

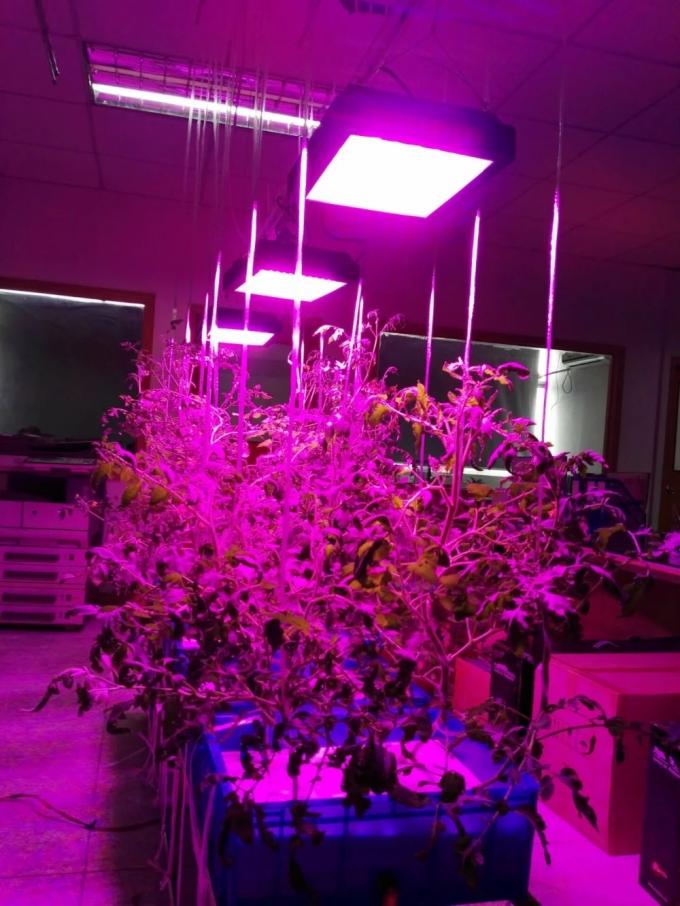

Application :
